Lite Rx API Hands On

Project Reactor의 Learn 페이지를 부분을 보면 여러 가이드가 있음. 그 중에서도, Lite Rx API Hands On가 괜찮았고 여기에도 간단히 정리.

Introduction to Reactive Programming

https://tech.io/playgrounds/929/reactive-programming-with-reactor-3/Intro

Why

짧은 내용 안에 핵심을 잘 담아냈다고 생각함.

declarative code (in a manner that is similar to functional programming) in order to build asynchronous sequences of events.

  • 선언적 코드
  • 비동기 프로세싱 파이파라인을 구축
  • 이벤트 기반 모델
  • 데이터가 이용 가능할 때, 컨슈머에게 푸시되는

이런 특징들이 중요한 이유는, 리소스들을 효율적으로 사용하고, 많은 클라이언트들을 받아주기 위한 가용량을 늘리기 위함. 저수준의 동시성 또는 병렬성 코드를 작성하지 않고도 말이다.

It also facilitates composition, which in turn makes asynchronous code more readable and maintanable.

  • 또한, 구성을 이용해 가독성과 유지보수성을 높임.

Interactions

  • source Publisher produces data
  • does nothing until a Subscriberhas registered(subscribed)

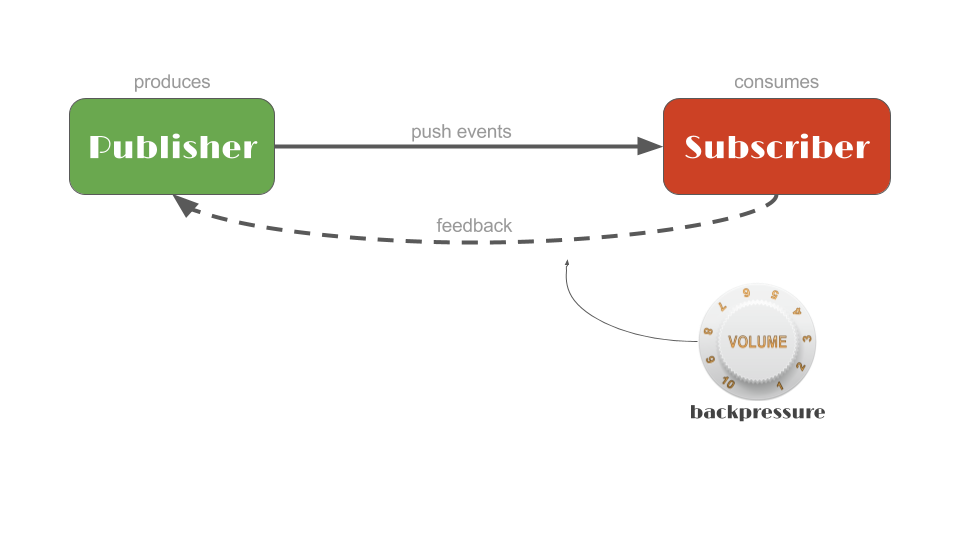

reactive stream sequences/interactions

  • 여기에 더해 operators라는 개념도 있음.
  • 데이터의 각 단계에 어떤 처리를 적용할지를 나타냄.
  • 오퍼레이터의 적용은 새로운 중간단계의 Publisher를 반환.
  • 또한 체이닝 됨.
  • 마지막 형태는 결국 Subscriber.
  • 자바의 Stream이랑 많이 유사.

Learn how to create Flux Instances

https://tech.io/playgrounds/929/reactive-programming-with-reactor-3/Flux

Description

  • Flux<T>는 Reactive Streams Publisher.
  • Flux 시퀀스를 만들고, 변환하고, 조율하는 많은 연산자들을 가지고 있음.
  • onNext 이벤트를 통해 0 ~ n 개의 <T> 엘리먼트를 emit하고,
  • onComplete그리고 onError 종료 이벤트를 통해 complete 또는 error 처리.
  • 종료 이벤트가 없다면 무한 Flux.

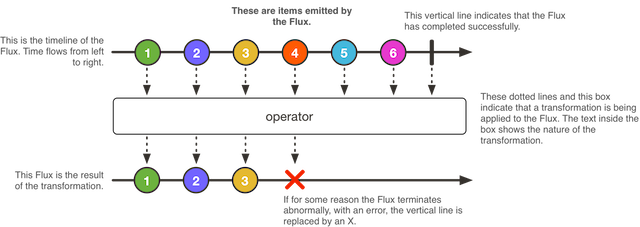

Flux 흐름

  • Flux의 정적 팩토리 ― 원천을 직접 생성하거나, 몇 개의 콜백 타입을 이용해 만들어 냄.
  • 연산자이자 인스턴스 메서드 ― 비동기 프로세싱 파이프라인 빌드.
  • Flux#subscribe() 또는 멀티캐스팅 연산(Flux#publish, Flux#publishNext): 파이프라인 전용 인스턴스를 구체화하고, 그 안에서 데이터 흐름을 일으킴.
Flux.fromIterable(getSomeLongList())
    .delayElements(Duration.ofMillis(100))
    .doOnNext(serviceA::someObserver)
    .map(d -> d * 2)
    .take(3)
    .onErrorResumeWith(errorHandler::fallback)
    .doAfterTerminate(serviceM::incrementTerminate)
    .subscribe(System.out::println);

Practice

여러 팩토리를 이용한 Flux 생성.

Flux<String> empty = Flux.empty();
Flux<String> fromReadilyAvailableData = Flux.just("1", "2");
Flux<String> fromIterable = Flux.fromIterable(Arrays.asList("1", "2"));

명령형 비동기 코드에서는 try-catch로 예외를 다뤘음. Reactive Streams에서는 onError 시그널을 정의해서 예외를 다룸. 그리고 이 이벤트는 종료 이벤트임을 다시 한 번 강조.

Flux<string> fromError = Flux.error(new IllegalStateException("Hello"));

아래는 100ms 주기로 0부터 9까지를 방출하는 코드.

Flux<String> emits10IncreasingValuesAtRegularPace = Flux
  .interval(Duration.ofMillis(100))
  .take(10);

Learn how to create Mono instances

https://tech.io/playgrounds/929/reactive-programming-with-reactor-3/Mono

Description

  • Mono<T> 역시 Reactive Streams Publisher.
  • Flux의 특수화. 최대 1개의 <T> 엘리먼트 방출.
  • vlued(complete with element), empty, failed(error) 중에 하나.
  • 오직 완료 시그널에만 관심있는 경우에 사용. Runnable에 대응.

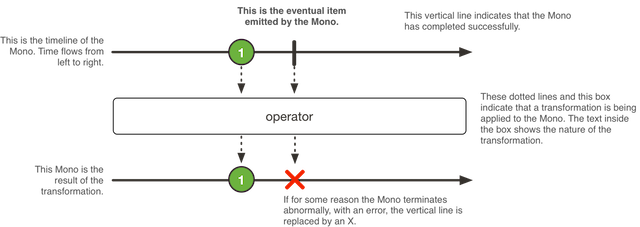

mono

Mono.just(1)
    .map(integer -> "foo" + integer)
    .or(Mono.delay(Duration.ofMillis(100)))
    .subscribe(System.out::println);

StepVerifier and how to use it

https://tech.io/playgrounds/929/reactive-programming-with-reactor-3/StepVerifier

Description

  • reactor-test artifact (이로부터 많은 것들이 설명됨)
  • 어떤 Publisher도 구독할 수 있음.
  • 그리고 나서 사용자가 정의한, 시퀀스에 관한 expectation들을 assert.
  • expectation을 충족하지 못하면 AssertionError를 생산.
  • 정적 팩토리인 crateStepVerifier 인스턴스를 얻어낼 수 있음.
StepVerifier.create(T<Publisher>).{expectations...}.verify();
  • DSL로 데이터 파트에 대한 expectation 셋업.
  • 단일 종료 expectation (completion, error, cancellation…)으로 끝남.
StepVerifier.withVirtualTime(() -> Mono.delay(Duration.ofHours(3)))
            .expectSubscription()
            .expectNoEvent(Duration.ofHours(2))
            .thenAwait(Duration.ofHours(1))
            .expectNextCount(1)
            .expectComplete()
            .verify();

Learn to transform our asynchronous data

https://tech.io/playgrounds/929/reactive-programming-with-reactor-3/transform

Practice

  • Mono와 Flux의 map에 대한 간단 소개.
  • 그리고 나머지 부분은 flatMap에 대한 것.
  • flatMap은 변환(transformation) Function을 인자로 받음.
  • 그런데 이 FunctionU가 아니라, Publisher<U>를 반환.
  • 그리고 이 퍼블리셔는 각 엘리먼트에 적용할 비동기 변환을 나타냄.
  • 만약, map을 사용한다면, Flux<Publisher<U>>를 얻게 됨.
  • 게다가 동기(synchronous) 호출.

But flatMap on the other hand knows how to deal with these inner publishers: it will subscribe to them then merge all of them into a single global output, a much more useful Flux<U>. Note that if values from inner publishers arrive at different times, they can interleave in the resulting Flux.

이제 아래 그림이 이해됨. ‘Async transformation’이라는 말도 와 닿음.

async transformation

Merge

https://tech.io/playgrounds/929/reactive-programming-with-reactor-3/Merge

  • Merging sequences
  • 몇 개의 Publisher들로부터 값들을 듣고(listening),
  • 단일 Flux로 값들을 방출(emitting)하는 것.
  • mergeconcat의 차이에 대해서도 언급.
  • 이 차이는 reactor document에 더 잘 나와 있다고 생각함.

Merge data from Publisher sequences contained in an array / vararg into an interleaved merged sequence. Unlike concat, sources are subscribed to eagerly.

merge

Concatenate all sources provided in an Iterable, forwarding elements emitted by the sources downstream. Concatenation is achieved by sequentially subscribing to the first source then waiting for it to complete before subscribing to the next, and so on until the last sources completes. Any error interrupts the sequence immediately and is forwarded downstream.

concat

Request

https://tech.io/playgrounds/929/reactive-programming-with-reactor-3/Request

Description

reactive stream sequences/interactions

  • 처음 소개했던 그림이 다시 나옴.
  • volume control을 다룰 차례이기 때문.
  • Reactive Stream 용어로는 backpressure.
  • 이를 통해 SubscriberPublisher에게,
  • 얼마나 많은 데이터를 처리할 준비가 되었는지를 알려줌.
  • Publisher가 생산하는 데이터 속도를 제한하는 피드백 메커니즘.
  • 이러한 수요의 제어control of the demandSubscription 레벨에서 이뤄짐.
  • Subscription은 각 subscribe() 호출에서 만들어지고,
  • cancel()이나 request(long)를 통해 제어.
  • 참고로, request(Long.MAX_VALUE)는 무한 수요unbounded demand를 의미.

Practice

StepVerifier를 통해서도 수요 조정이 가능.

// TODO Create a StepVerifier
// that initially requests all values
// and expect 4 values to be received
StepVerifier requestAllExpectFour(Flux<User> flux) {
  return StepVerifier
    .create(flux)
    .expectNextCount(4)
    .expectComplete();
}

// TODO Create a StepVerifier
// that initially requests 1 value and expects User.SKYLER
// then requests another value and expects User.JESSE.
StepVerifier requestOneExpectSkylerThenRequestOneExpectJesse(Flux<User> flux) {
  return StepVerifier
    .create(flux)
    .expectNext(User.SKYLER)
    .expectNext(User.JESSE)
    .thenCancel(); // cancel하지 않으면 영원히 끝나지 않음.
}

// TODO Return a Flux
// with all users stored in the repository
// that prints automatically logs for all Reactive Streams signals
Flux<User> fluxWithLog() {
  return new ReactiveUserRepository()
    .findAll()
    .log();
}

// TODO Return a Flux with all users stored in the repository that prints "Starring:" on subscribe, "firstname lastname" for all values and "The end!" on complete
Flux<User> fluxWithDoOnPrintln() {
  return repository
    .findAll()
    .doOnSubscribe(s -> log.info("Starring:"))
    .doOnNext(u -> log.info(u.getFirstname() + " " + u.getLastname()))
    .doOnComplete(() -> log.info("The end!"));
}

Error

https://tech.io/playgrounds/929/reactive-programming-with-reactor-3/Error

Description

  • 에러를 전파propagate하고, 에러로부터 복구recover할 수 있는 연산자들이 내장.
  • 예컨대, 폴백으로 다른 시퀀스를 사용하거나, 새로운 Subscription을 재시도하거나.

Practice

  • Project Reactor 도큐먼트의 Static Fallback Value를 보면,
  • 폴백 값 제공을 위한 Mono#onErrorReturn, Flux#onErrorResume,
  • CheckedException을 처리하기 위한 Exceptions#propagate 설명이 잘 나와 있음.
  • onErrorReturnonErrorResume은 각각 아래와 같이 설명.

Catch and return a static default value
Catch and execute an alternative path with a fallback method

/**
 * TODO Return a Mono<User> containing User.SAUL
 * when an error occurs in the input Mono,
 * else do not change the input Mono.
 */
Mono<User> betterCallSaulForBogusMono(Mono<User> mono) {
  return mono.onErrorReturn(User.SAUL);
}

/**
 * TODO Return a Flux<User> containing User.SAUL and User.JESSE
 * when an error occurs in the input Flux,
 * else do not change the input Flux.
 */
Flux<User> betterCallSaulAndJesseForBogusFlux(Flux<User> flux) {
  return .onErrorResume(e -> Flux.just(User.SAUL, User.JESSE));
}

/**
 * TODO Implement a method
 * that capitalizes each user of the incoming flux
 * using the #capitalizeUser method
 * and emits an error containing a GetOutOfHereException error
 */
Flux<User> capitalizeMany(Flux<User> flux) {
  return flux
    .map(u -> {
      try {
        return capitalizeUser(u);
      } catch (GetOutOfHereException e) {
        throw Exceptions.propaget(e);
      }
    });
}

Adapt

https://tech.io/playgrounds/929/reactive-programming-with-reactor-3/Adapt

  • RxJava2와 Reactor 3 타입들을 외부 라이브러리 없이도 서로 interact.
  • Flux, Flowable은 모두 Publisher의 구현체이며,
  • 모든 Publisher로부터 변환 가능한 팩토리 메서드를 제공.
// TODO Adapt Flux to RxJava Flowable
Flowable<User> fromFluxToFlowable(Flux<User> flux) {
    return Flowable.fromPublisher(flux);
}

// TODO Adapt RxJava Flowable to Flux
Flux<User> fromFlowableToFlux(Flowable<User> flowable) {
  return Flux.from(flowable);
}
  • ObservablePublisher 구현체가 아니지만 약간의 트릭으로 Flux 어댑트가 가능.
  • Flowable로 변환한 뒤 Flux로 변환하는 것.
  • 참고로, Observable은 백프레셔를 지원하지 않아서,
  • Flowable 변환 시 백프레셔 전략을 지정해 줘야 함.
// TODO Adapt Flux to RxJava Observable
Observable<User> fromFluxToObservable(Flux<User> flux) {
  return Observable.fromPublisher(flux);
}

// TODO Adapt RxJava Observable to Flux
Flux<User> fromObservableToFlux(Observable<User> observable) {
  return Flux.from(observable.toFlowable(BackpressureStrategy.BUFFER));
}
  • 그 외에 Mono <-> Single 변환,
  • Mono <-> CompletableFuture 변환을 다루고 있음.

Other Operations

https://tech.io/playgrounds/929/reactive-programming-with-reactor-3/OthersOperations

Description

  • 그 동안 다룬 범주에는 포함되지 않지만 유용한 연산자들을 소개.
  • 이 외에도 FluxMono javadoc, 그리고 레퍼런스 가이드를 잘 살펴볼 것을 권장.
  • 서로 다른 지연을 가진 여러 Flux를 하나로 합치는 zip.
  • 여러 Mono 중 가장 먼저 응답이 도착하는 것을 사용하는 first.
  • Flux에도 마찬가지로 first 존재.
  • Flux의 타입과 값에 관심 없고 단지 완료되기만을 바라는 경우 사용하는 ignoreElementsthen.
  • onNext에서 기본적으로는 null 값을 허용치 않음. 아래의 Mono#onNext, MonoJust의 코드는 참고.
// Mono#doOnNext
public final Mono<T> doOnNext(Consumer<? super T> onNext) {
  Objects.requireNonNull(onNext, "onNext");
  return doOnSignal(this, (Consumer)null, onNext, (Consumer)null, (Runnable)null, (LongConsumer)null, (Runnable)null);
}

// MonoJust
MonoJust(T value) {
    this.value = Objects.requireNonNull(value, "value");
}
  • Mono에 넘겨주려는 값이 null일 수 있는 경우를 위한 Mono#justOrEmpty.
  • Mono가 empty인 경우를 방지하기 위한 Mono#defaultIfEmpty.
// TODO Create a Flux of user from Flux of username, firstname and lastname.
Flux<User> userFluxFromStringFlux(Flux<String> usernameFlux, Flux<String> firstnameFlux, Flux<String> lastnameFlux) {

  return Flux
      .zip(usernameFlux, firstnameFlux, lastnameFlux)
      .map(tuple3 -> new User(tuple3.getT1(), tuple3.getT2(), tuple3.getT3()));
}

// TODO Return the mono which returns its value faster
Mono<User> useFastestMono(Mono<User> mono1, Mono<User> mono2) {
  return Mono.first(mono1, mono2);
}

// TODO Return the flux which returns the first value faster
Flux<User> useFastestFlux(Flux<User> flux1, Flux<User> flux2) {
  return Flux.first(flux1, flux2);
}

// TODO Convert the input Flux<User> to a Mono<Void> that represents the complete signal of the flux
Mono<Void> fluxCompletion(Flux<User> flux) {
  return flux.ignoreElements().then();
}

// TODO Return a valid Mono of user for null input and non null input user (hint: Reactive Streams do not accept null values)
Mono<User> nullAwareUserToMono(User user) {
  return Mono.justOrEmpty(user);
}

// TODO Return the same mono passed as input parameter, expect that it will emit User.SKYLER when empty
Mono<User> emptyToSkyler(Mono<User> mono) {
  return mono.defaultIfEmpty(User.SKYLER);
}

참고로, userFastestMono를 검증하는 코드는 아래와 같음.

@Test
public void fastestMono() {
  ReactiveRepository<User> repository = new ReactiveUserRepository(MARIE);
  ReactiveRepository<User> repositoryWithDelay = new ReactiveUserRepository(250, MIKE);
  Mono<User> mono = workshop.useFastestMono(repository.findFirst(), repositoryWithDelay.findFirst());
  StepVerifier.create(mono)
      .expectNext(MARIE)
      .verifyComplete();

  repository = new ReactiveUserRepository(250, MARIE);
  repositoryWithDelay = new ReactiveUserRepository(MIKE);
  mono = workshop.useFastestMono(repository.findFirst(), repositoryWithDelay.findFirst());
  StepVerifier.create(mono)
      .expectNext(MIKE)
      .verifyComplete();
}

Reactive to Blocking

https://tech.io/playgrounds/929/reactive-programming-with-reactor-3/ReactiveToBlocking

  • 일부 코드만 reactive로 바꿀 때가 있음.
  • 이 경우 리액티브 시퀀스를 좀 더 명령형(imperative)으로 재사용 해야 할수도.
  • Mono#block()을 사용하면 Mono 값이 이용 가능해질 때까지 대기하게 됨.
  • 만약, onError 이벤트가 발생하면 Exception을 던지게 됨.
  • MUST 대문자로 (굳이, 당연한 얘기 같음에도 불구하고) 아래의 경고도 하고 있음.

You MUST avoid this at all cost in the middle of other reactive code, as this has the potential to lock your whole reactive pipeline.

  • 아래는 각각 MonoFlux를 blocking 하는 코드들.
// TODO Return the user contained in that Mono
User monoToValue(Mono<User> mono) {
  return mono.block();
}

// TODO Return the users contained in that Flux
Iterable<User> fluxToValues(Flux<User> flux) {
  return flux.toIterable();
}

Blocking to Reactive

https://tech.io/playgrounds/929/reactive-programming-with-reactor-3/BlockingToReactive

Description

  • “How to deal with legacy, non reactive code?”
  • 예컨대, JDBC 연결 같은 blocking 코드를 사용해야 할 때,
  • 어떻게 하면 리액티브 파이프라인을 사용하면서도 성능 저하를 최소화 할 수 있을까?

The best course of action is to isolate such intrinsically blocking parts of your code into their own execution context via a Scheduler, keeping the efficiency of the rest of the pipeline high and only creating extra threads when absolutely needed.

  • blocking 부분은 Scheduler 같은 것을 써서, 별도의 스레드로 격리시키라고 함.
  • 스레드 자원을 좀 더 사용하는 대신, 성능 상의 이점을 계속 유지.

Practice

  • subscribeOn 메서드는 자신에게 제공된 Scheduler와 함께 시퀀스를 격리.
  • 예컨대, Schedulers.elastic()은 스레드 풀을 생성함.
  • 이 풀은 (그래서 elastic이라는 이름을 가지는 듯) 수요에 따라 자동으로 크기를 증감.
  • 아래는 publisher가 blocking인 경우의 예시.
// TODO Create a Flux for reading all users from the blocking repository deferred until the flux is subscribed, and run it with an elastic scheduler
Flux<User> blockingRepositoryToFlux(BlockingRepository<User> repository) {
  final Scheduler scheduler = Schedulers.elastic();

  return Flux
      .defer(() -> Flux.fromIterable(repository.findAll()))
      .subscribeOn(scheduler);
}
  • 아래는 subscriber가 blocking인 경우의 예시.
// TODO Insert users contained in the Flux parameter in the blocking repository using an elastic scheduler and return a Mono<Void> that signal the end of the operation
Mono<Void> fluxToBlockingRepository(Flux<User> flux, BlockingRepository<User> repository) {
  return flux
      .publishOn(Schedulers.elastic())
      .doOnNext(repository::save)
      .then();
}

끝.
